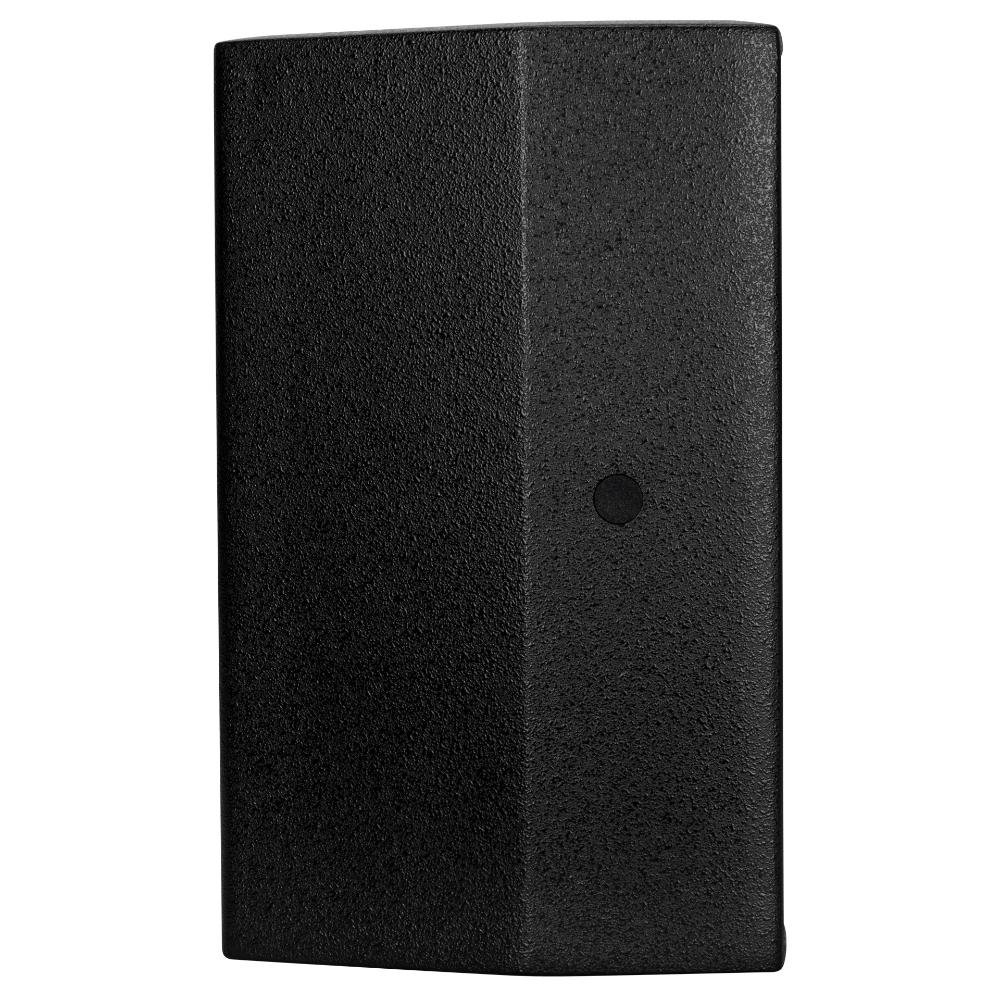

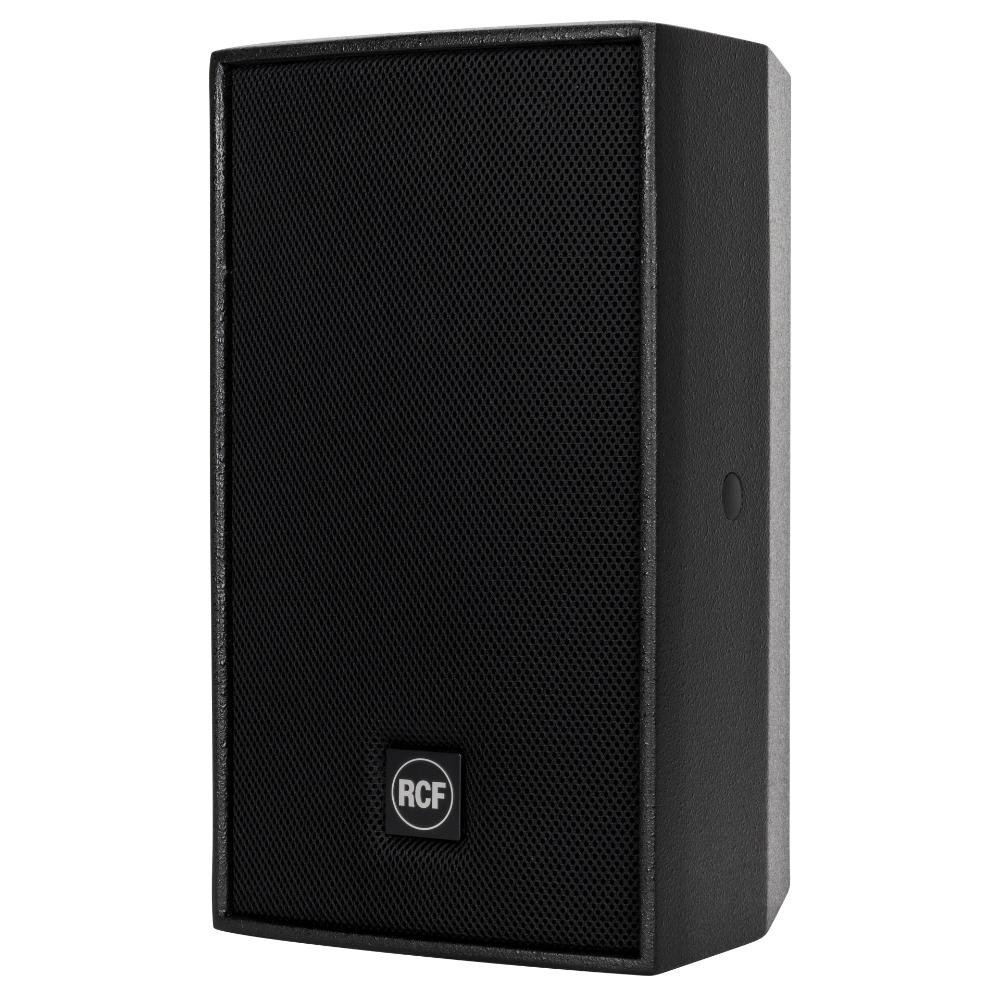

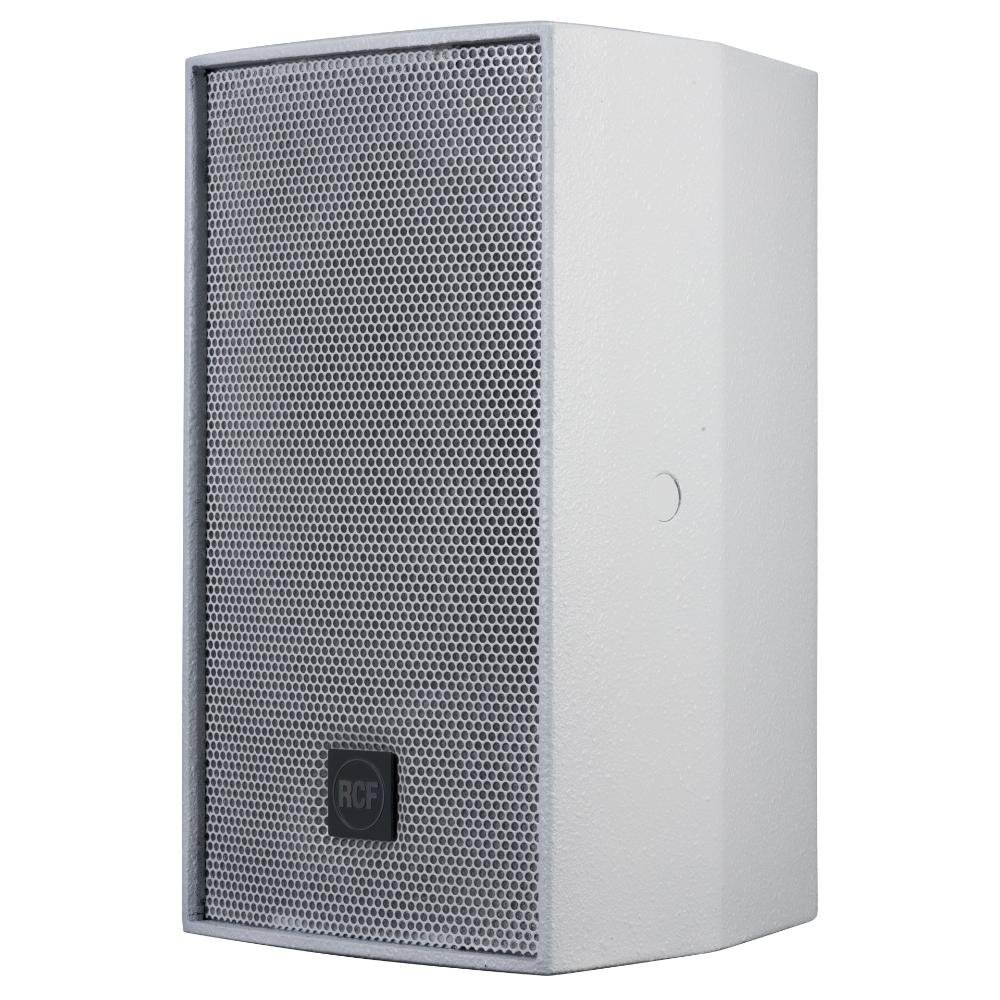

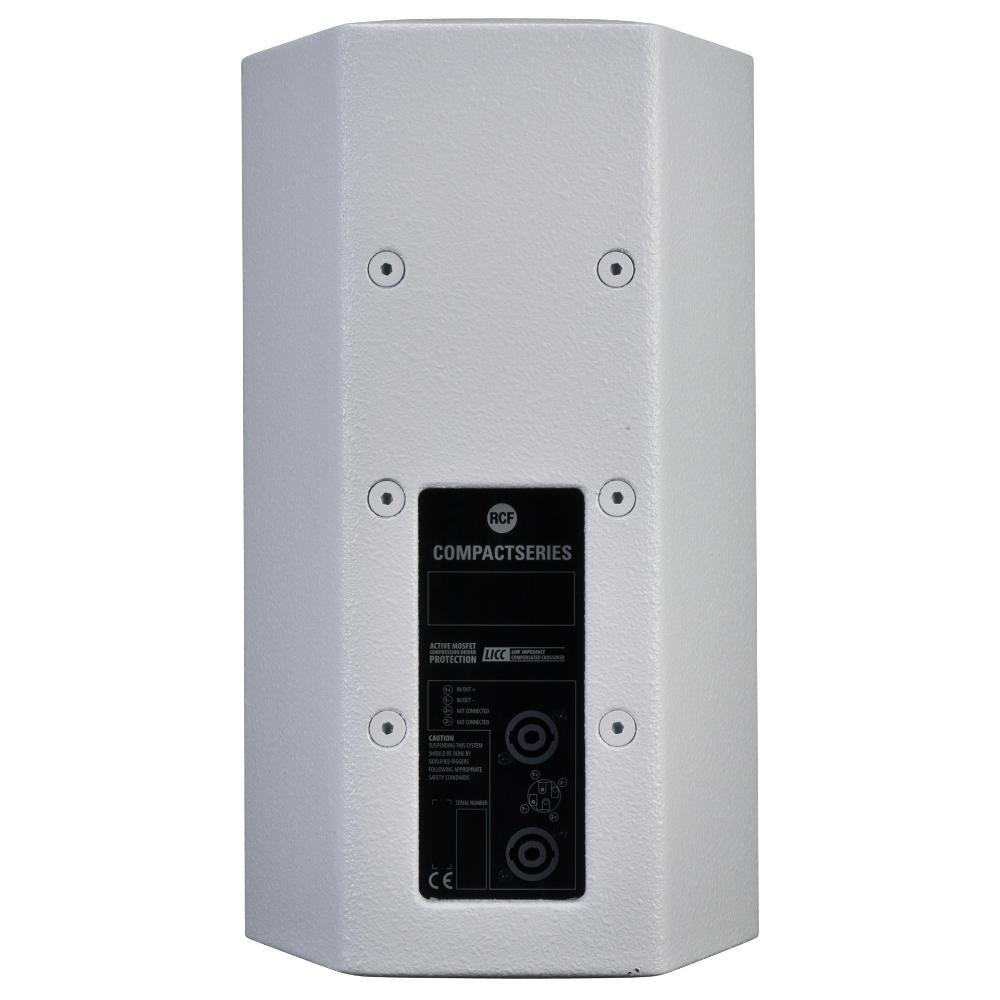

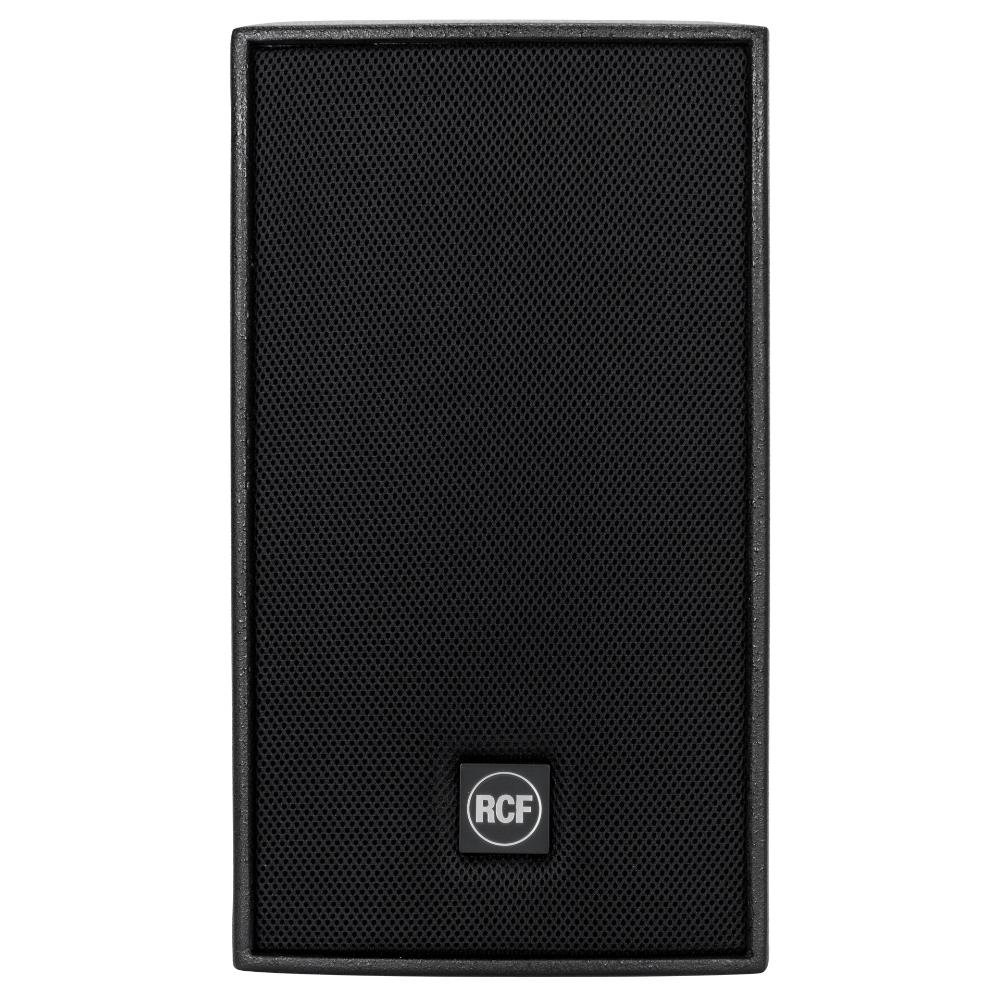

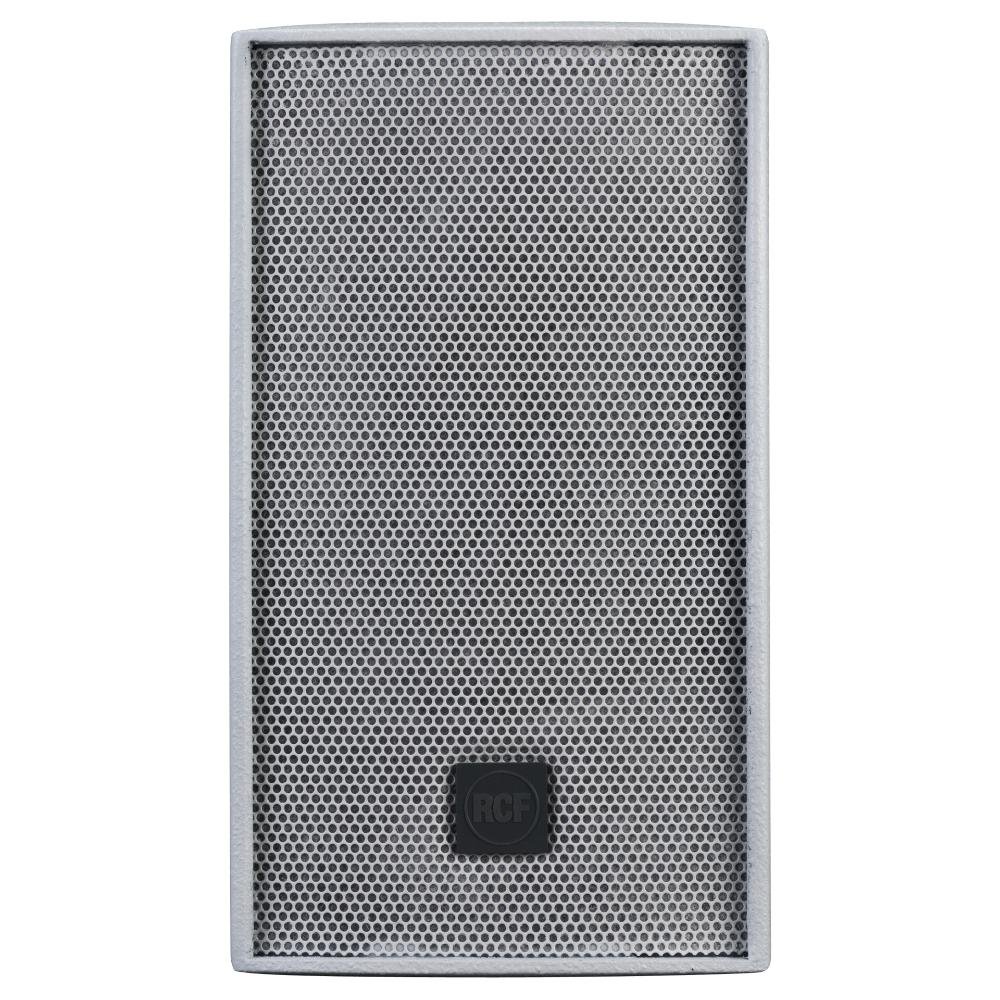

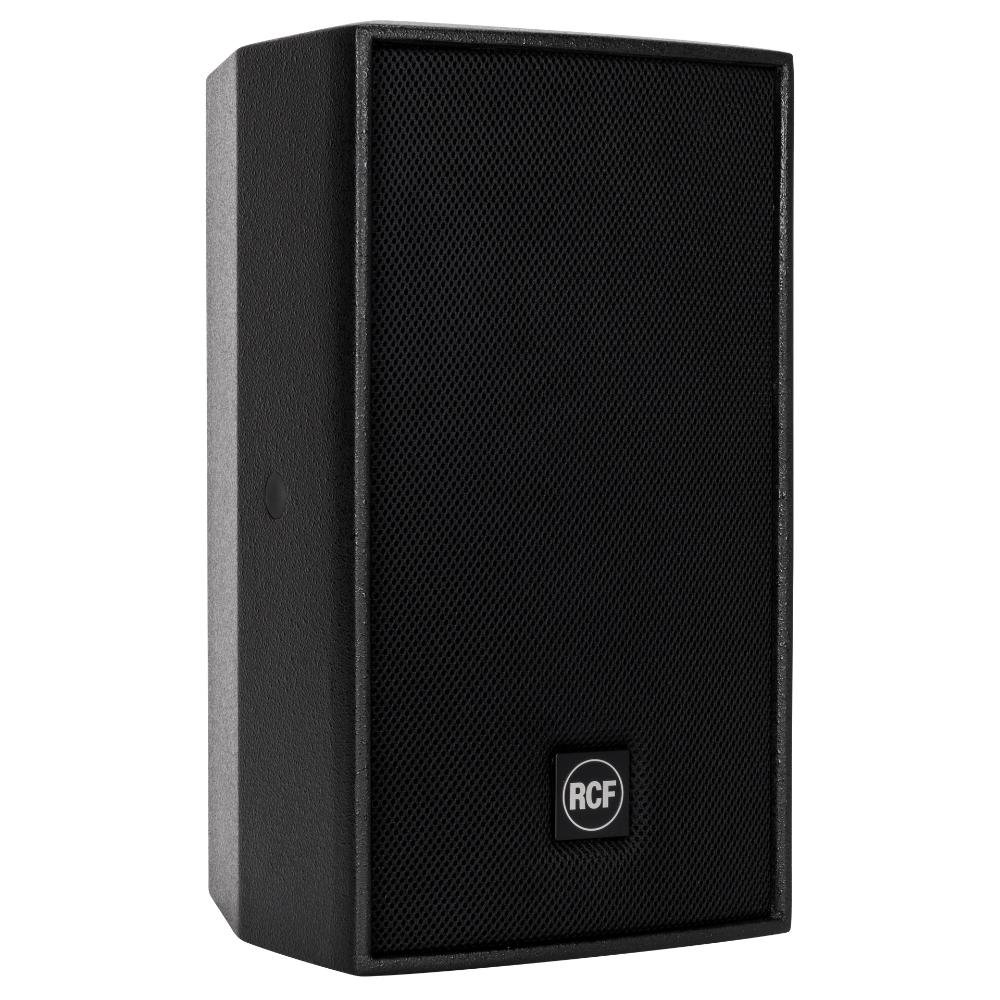

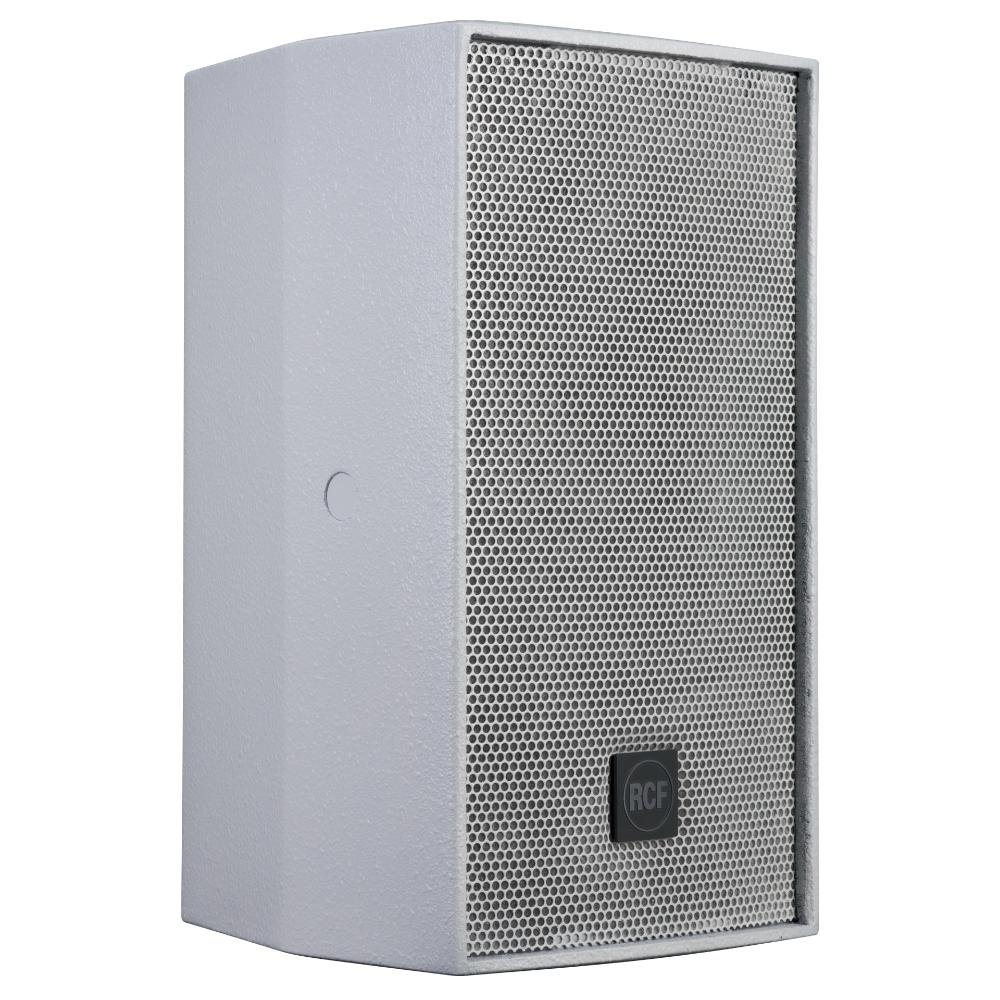

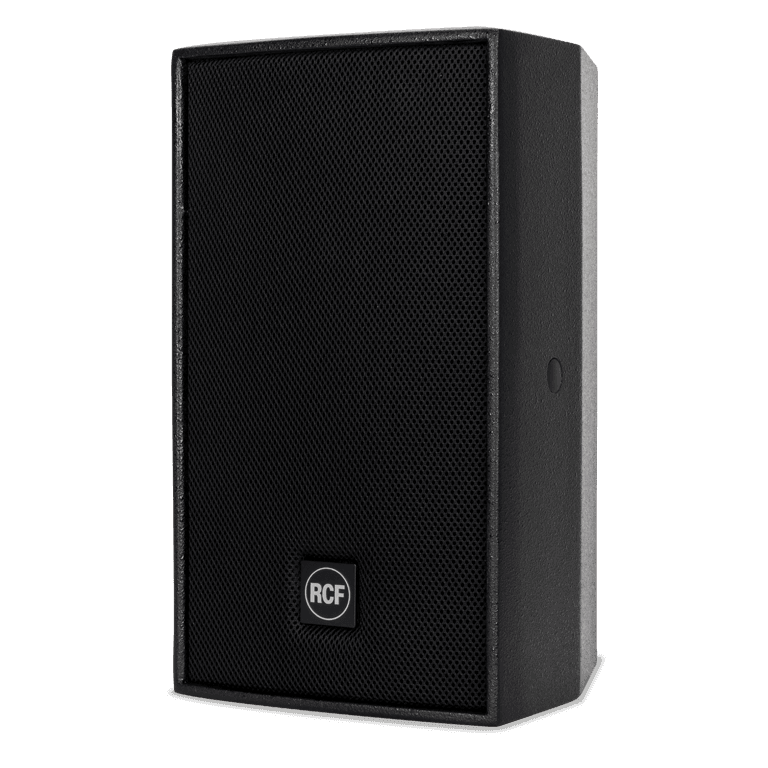

C 3108-126
TWO-WAY PASSIVE SPEAKER
Product Summary
The C3108-126 is a full range extremely versatile wide-dispersion,
low profile, two-way loudspeaker system for near field applications.
Its compact size makes it ideal for low visibility side wall mounting.

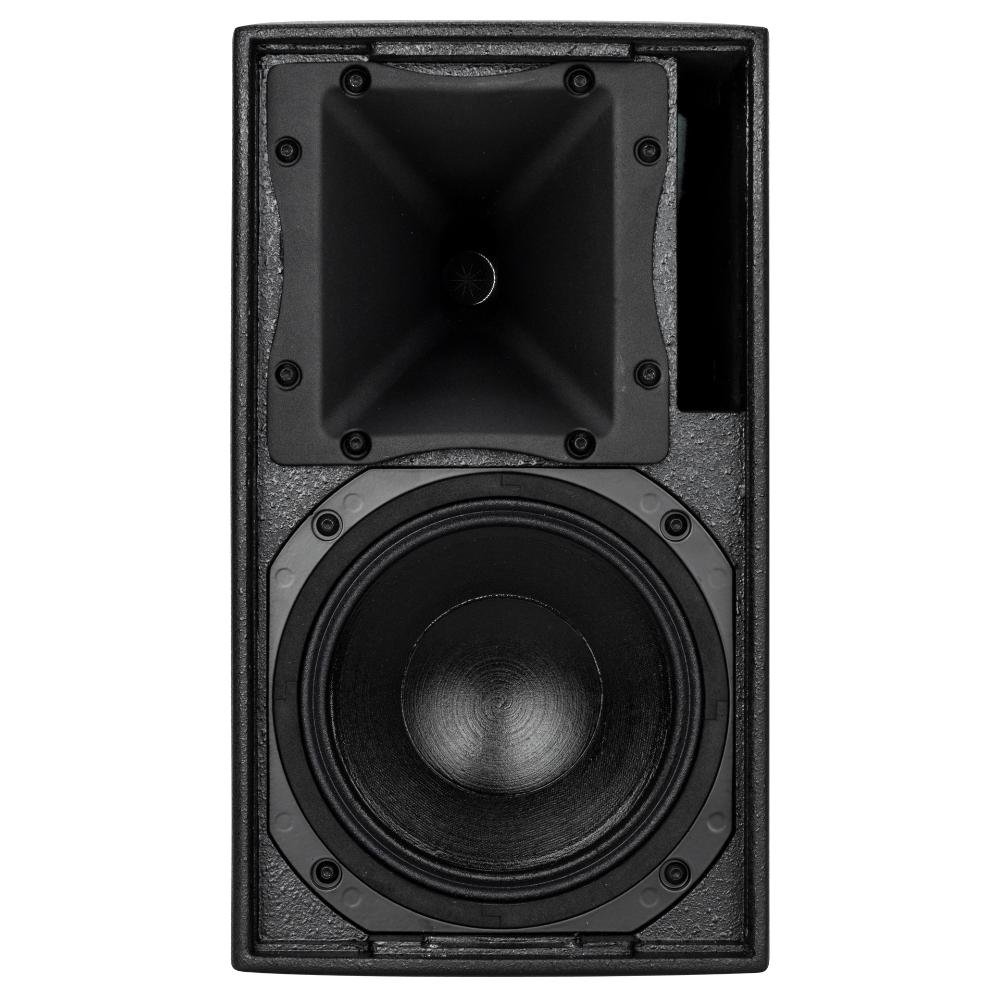

The high-frequency section is a constant directivity horn loaded to
a 1” compression driver with a 1.5” diaphragm assembly for smooth,
wide dispersion. The low-frequency transducer is an 8” woofer with
a 2” voice coil.
Dynamic high-frequency driver protection is accomplished with a
new RCF exclusive - ‘Active Mosfet Compression Driver Protection
System’ (AMCDP), chosen to complement the driver power curve.
Product Description
120°x 60° CMD (Constant Matching Design) constant
directivity horn
Rotatable Horn System for horizontal cabinet mounting
applications
HF driver AMCDP (Active Mosfet Compression Driver
Protection)
LICC (Low Impedance Compensated Crossover) network
8 Suspension points

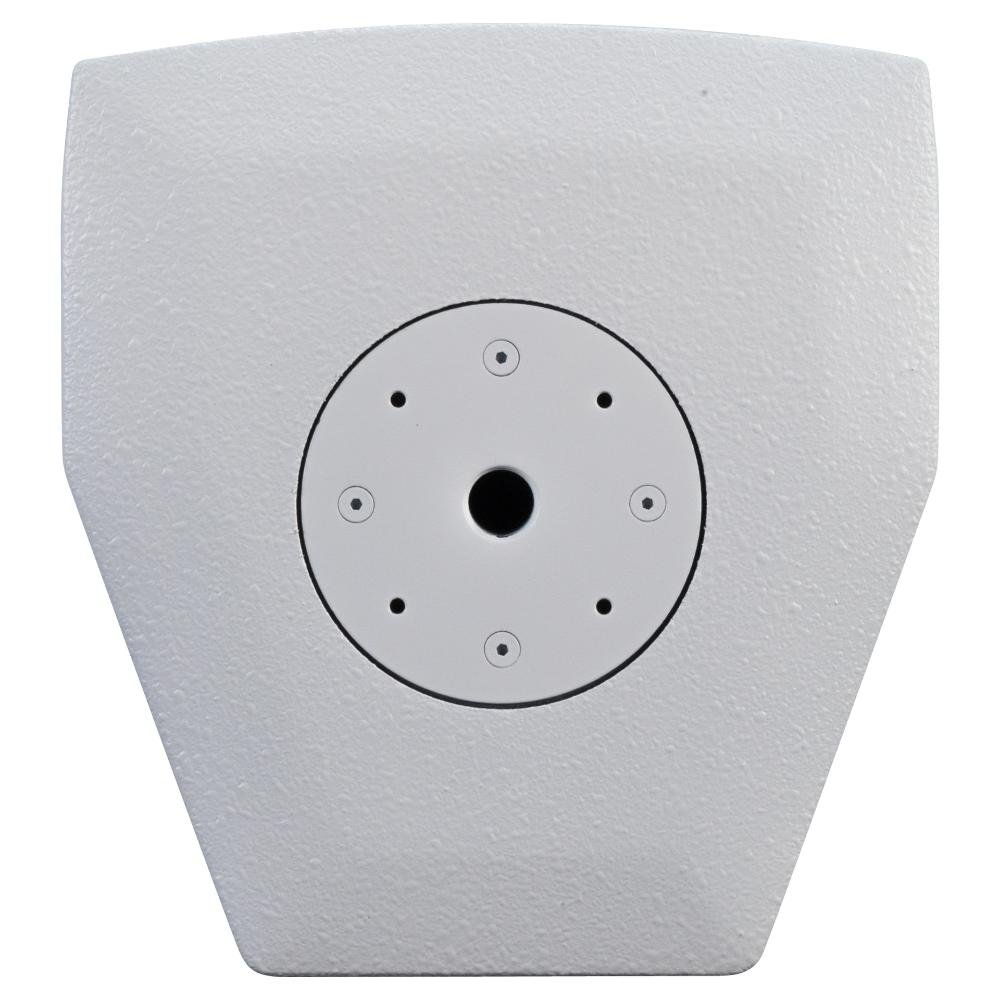

OmnimountTM 75 Plate fixing positions on rear of cabinet
Product Specification
POWER SECTION
(top and bottom)

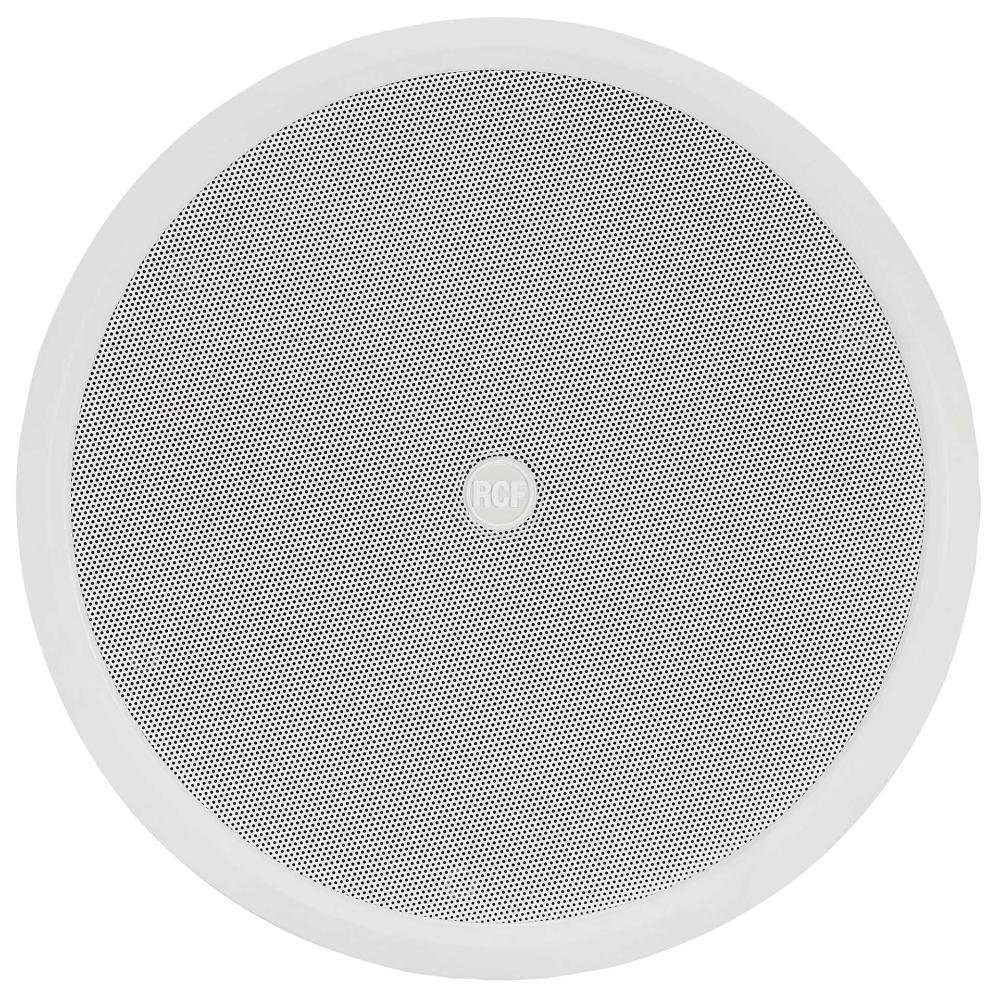

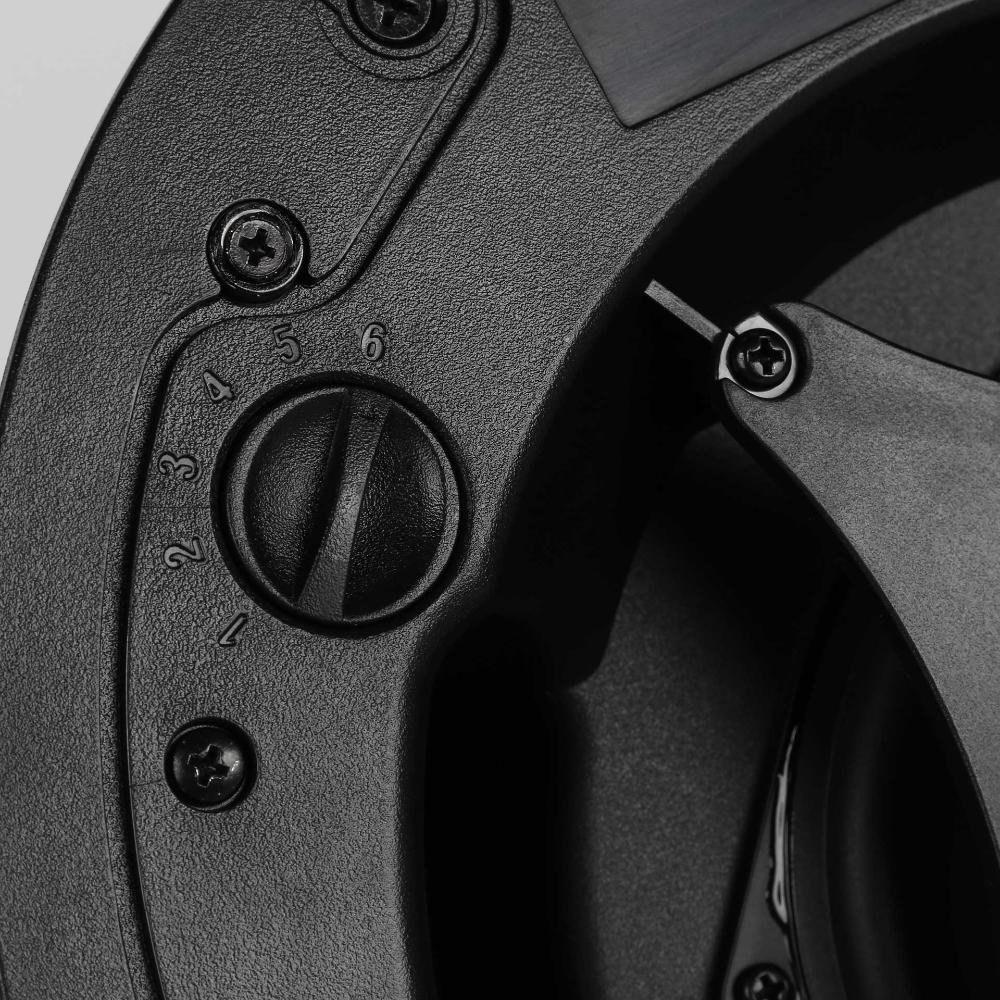

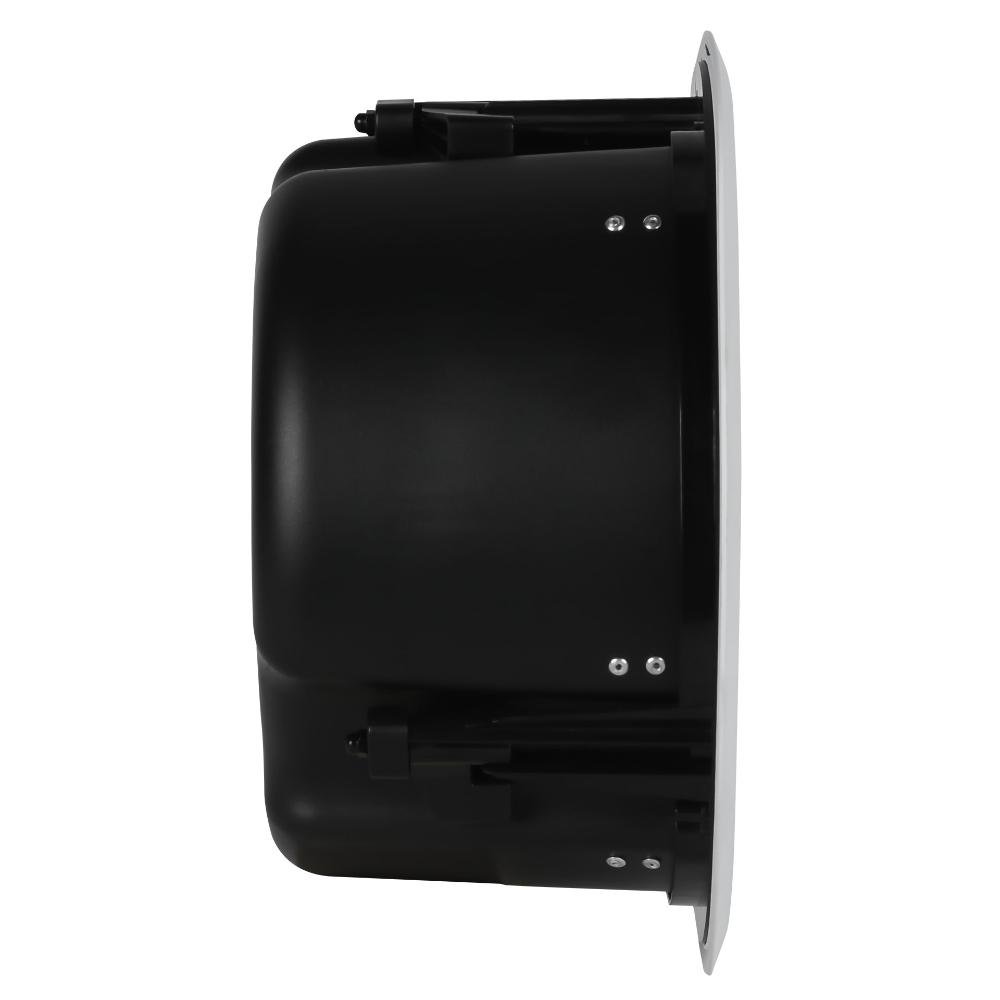

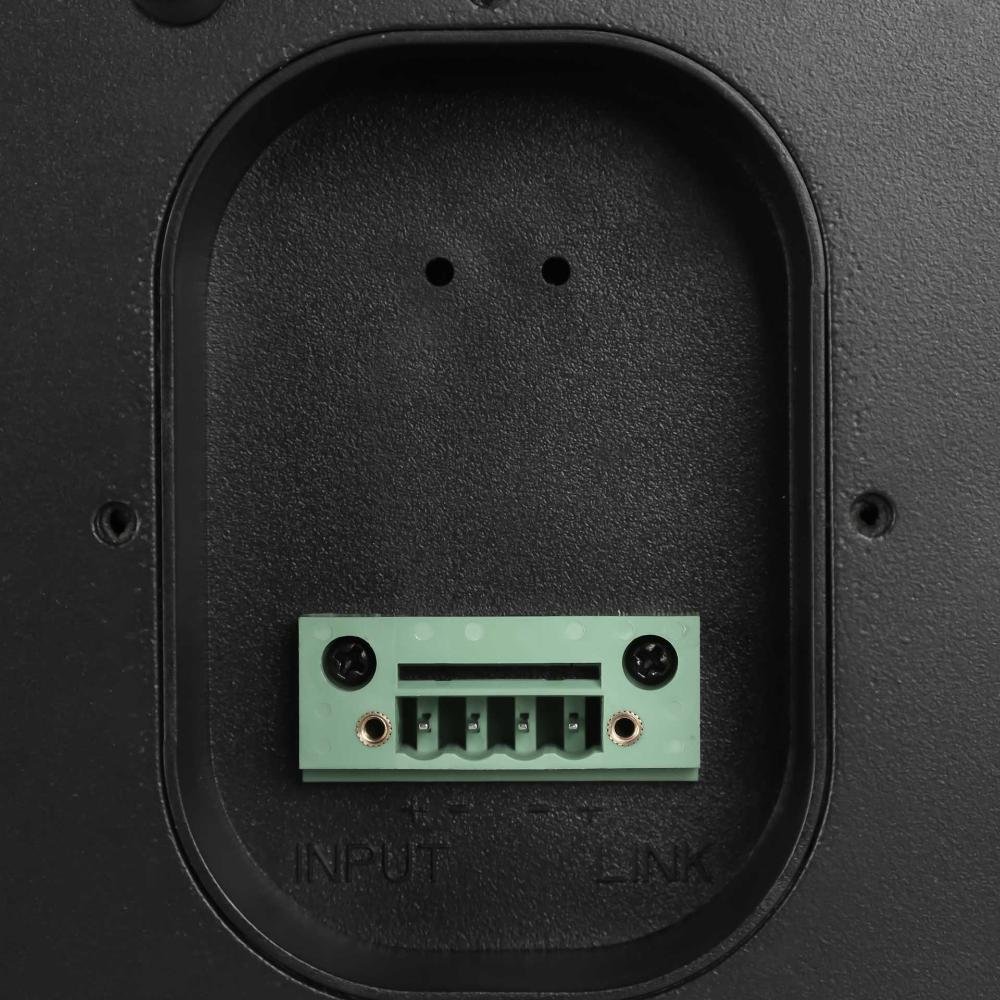

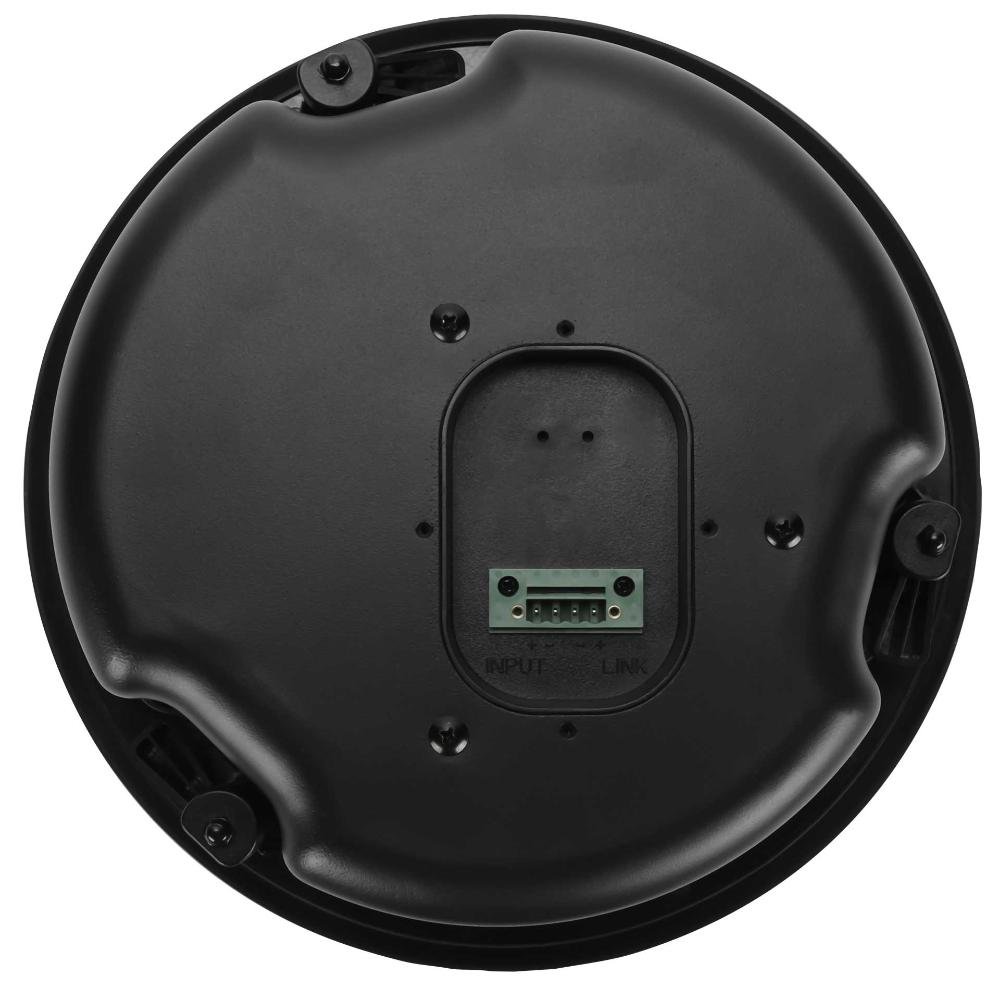

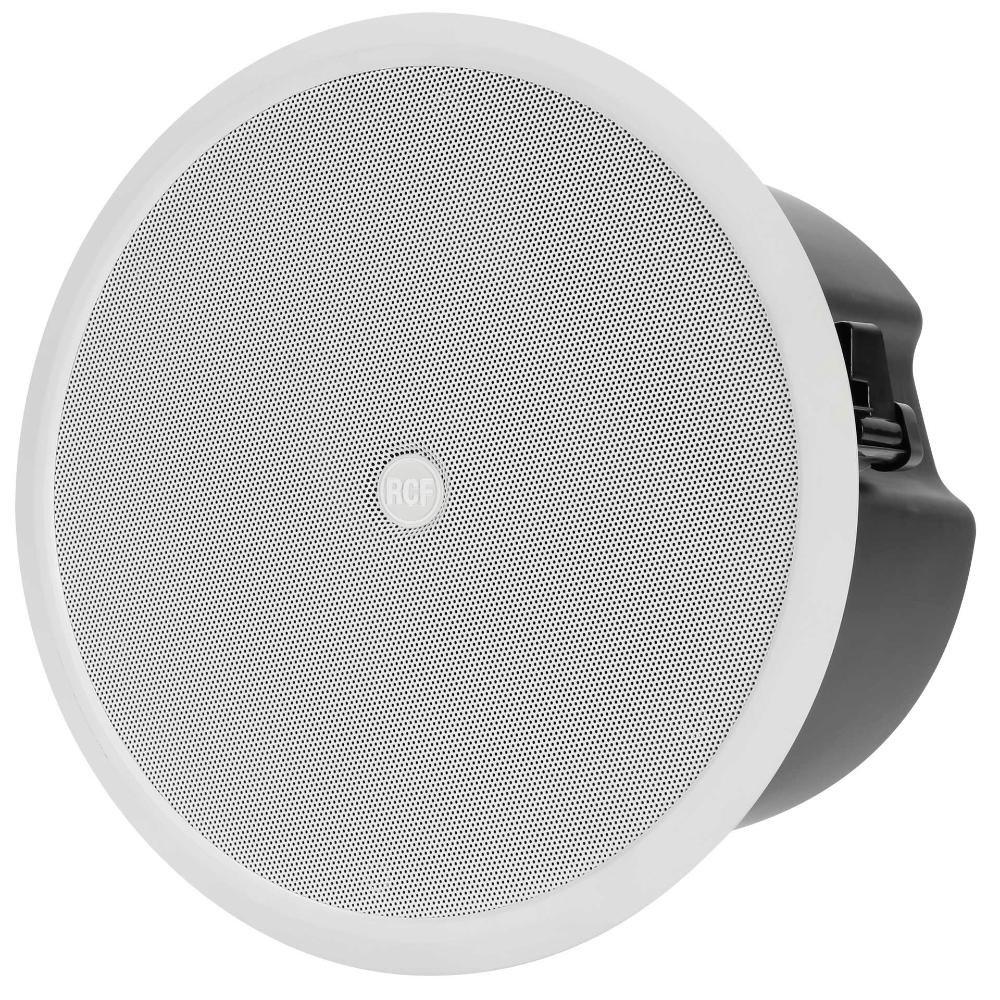

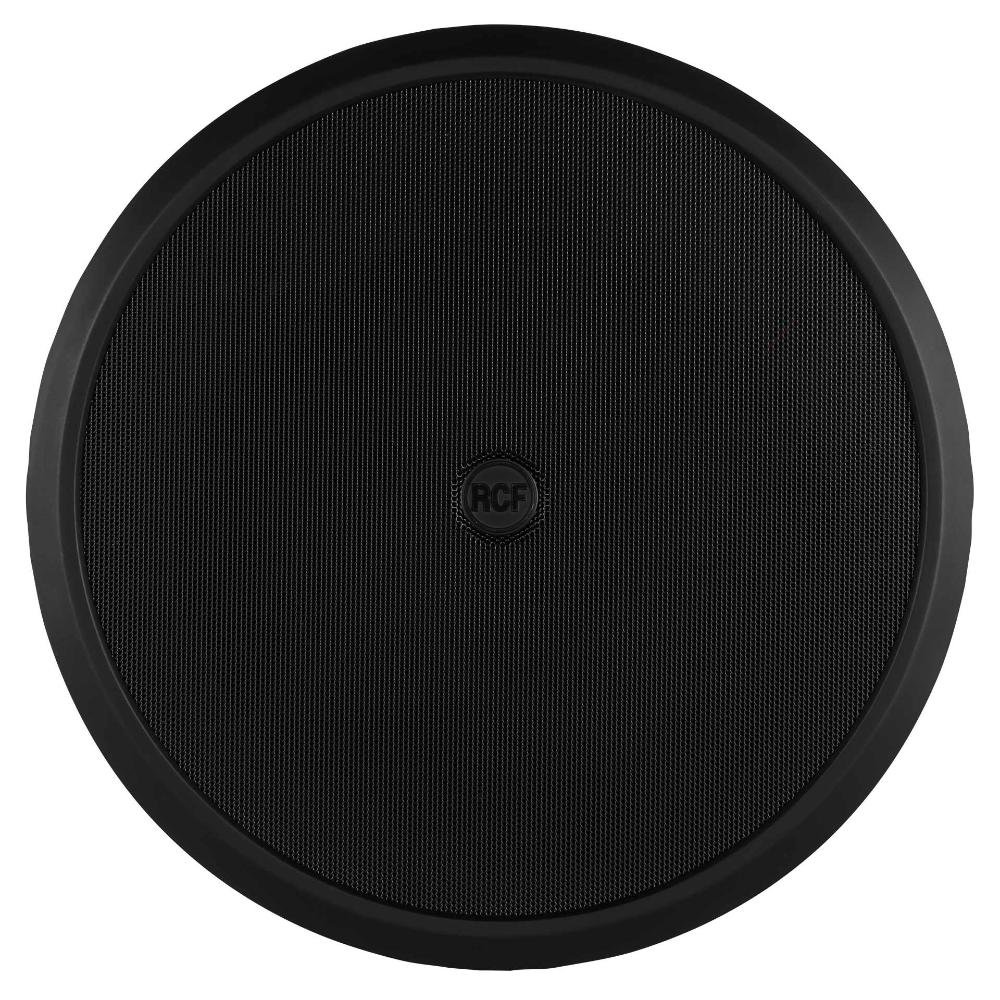

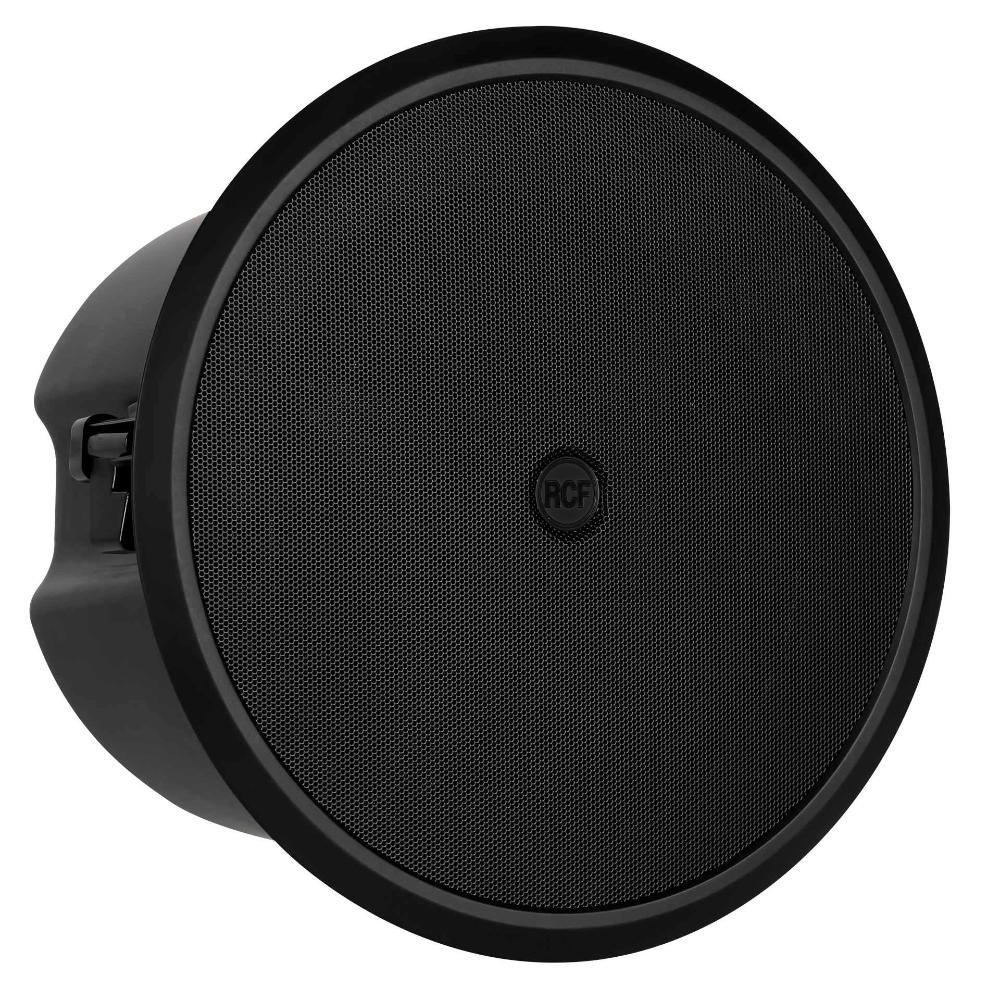

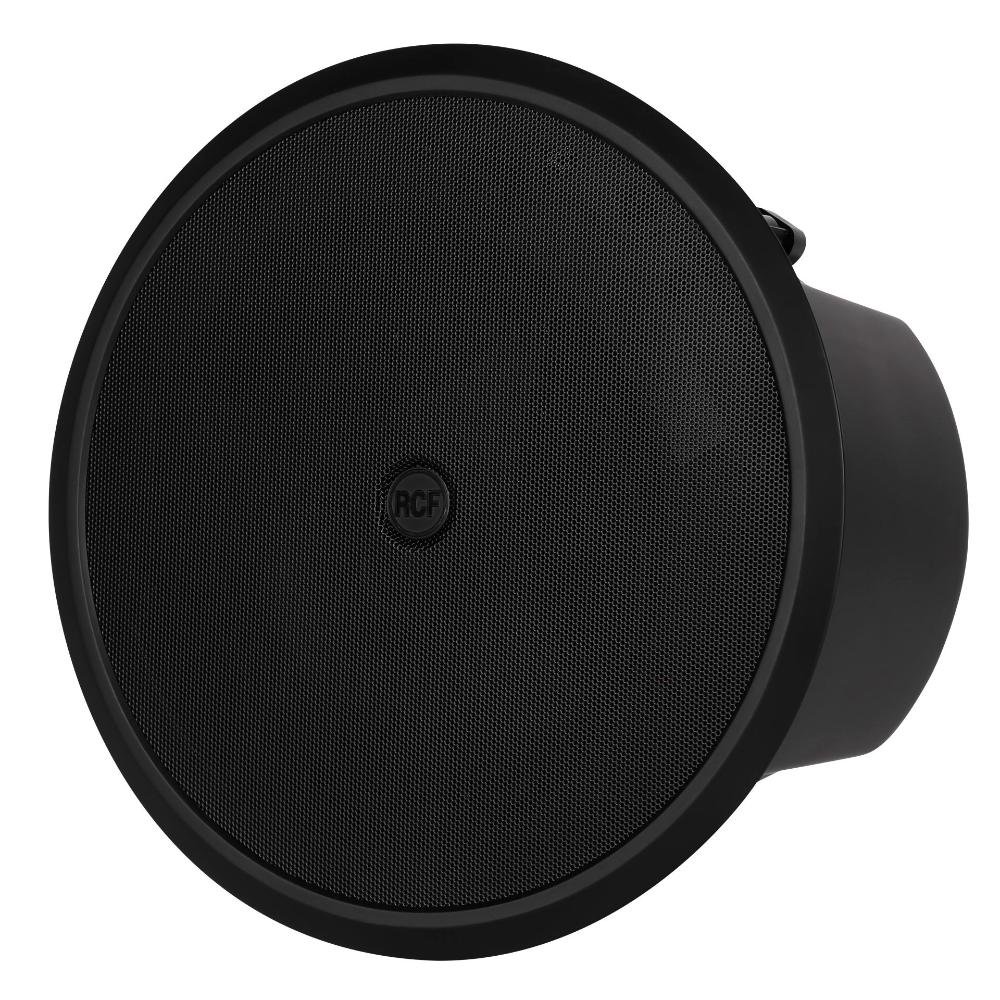

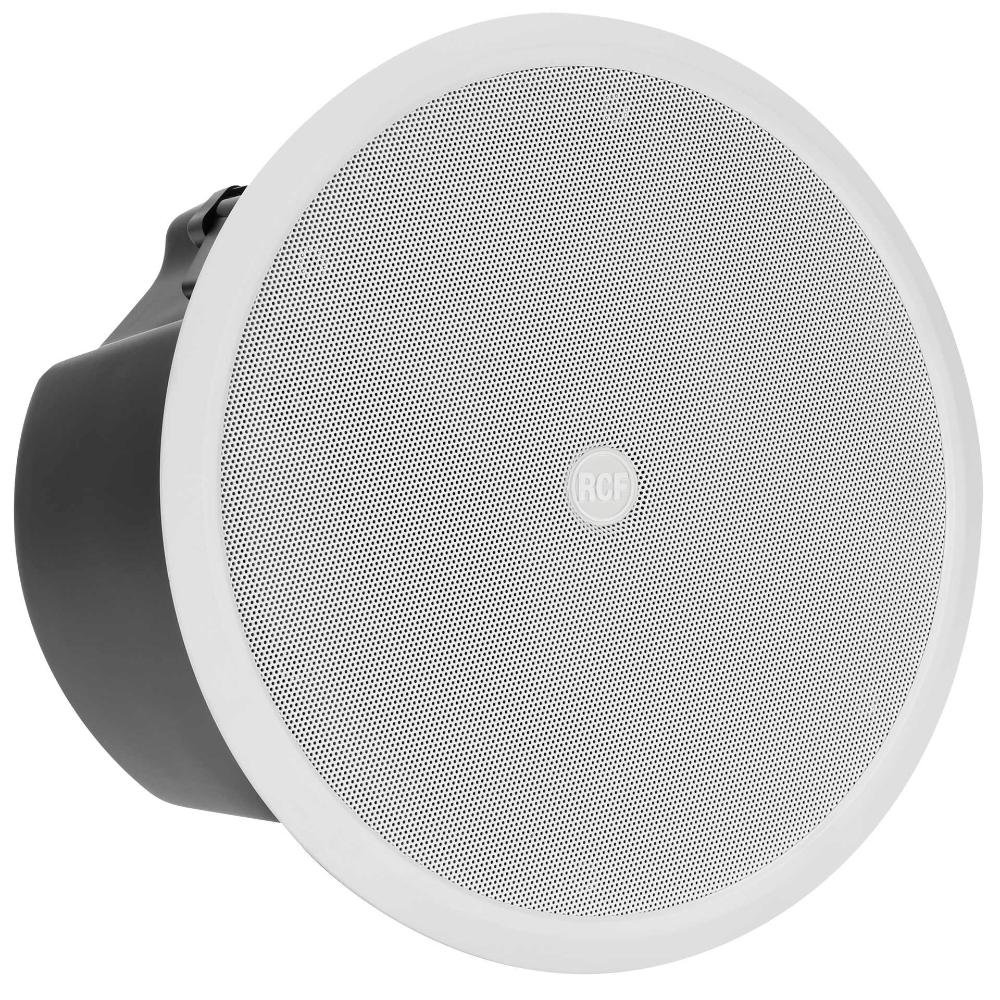

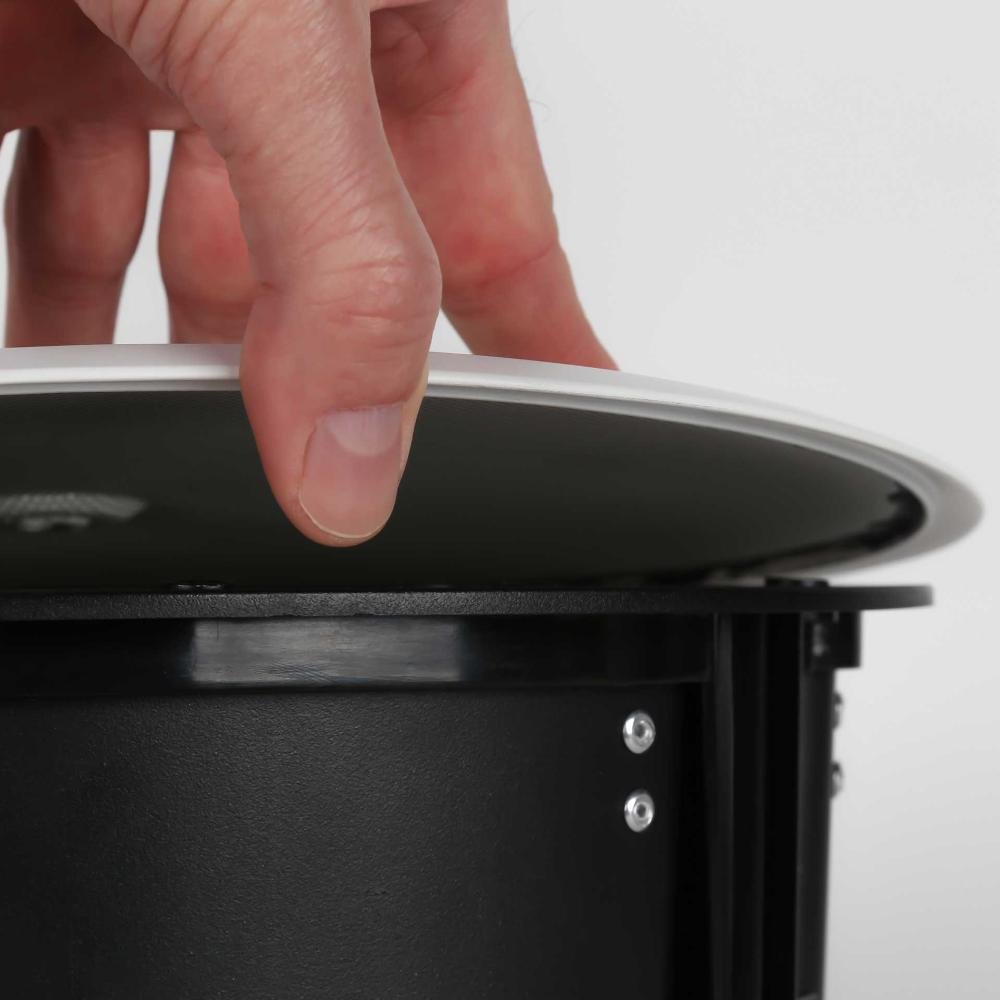

CMR 50T
TWO-WAY CEILING MONITOR SPEAKER
Product Summary

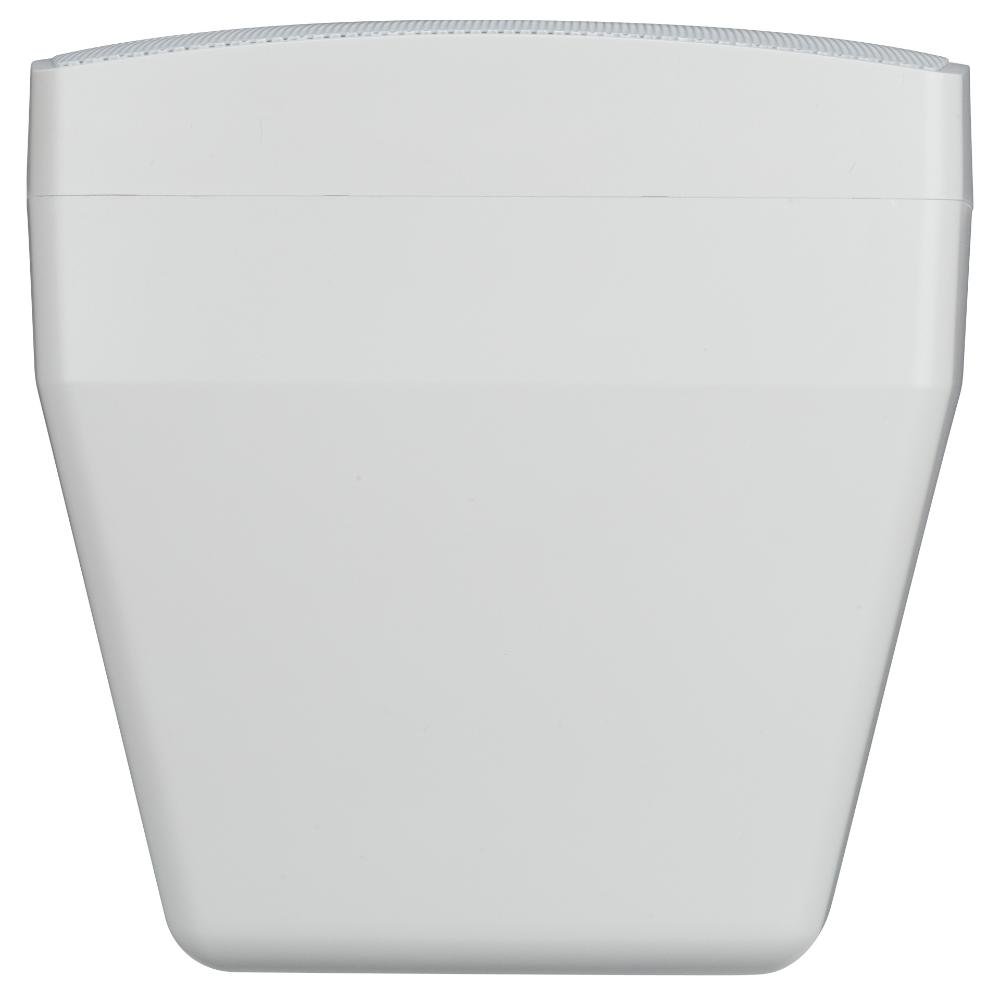

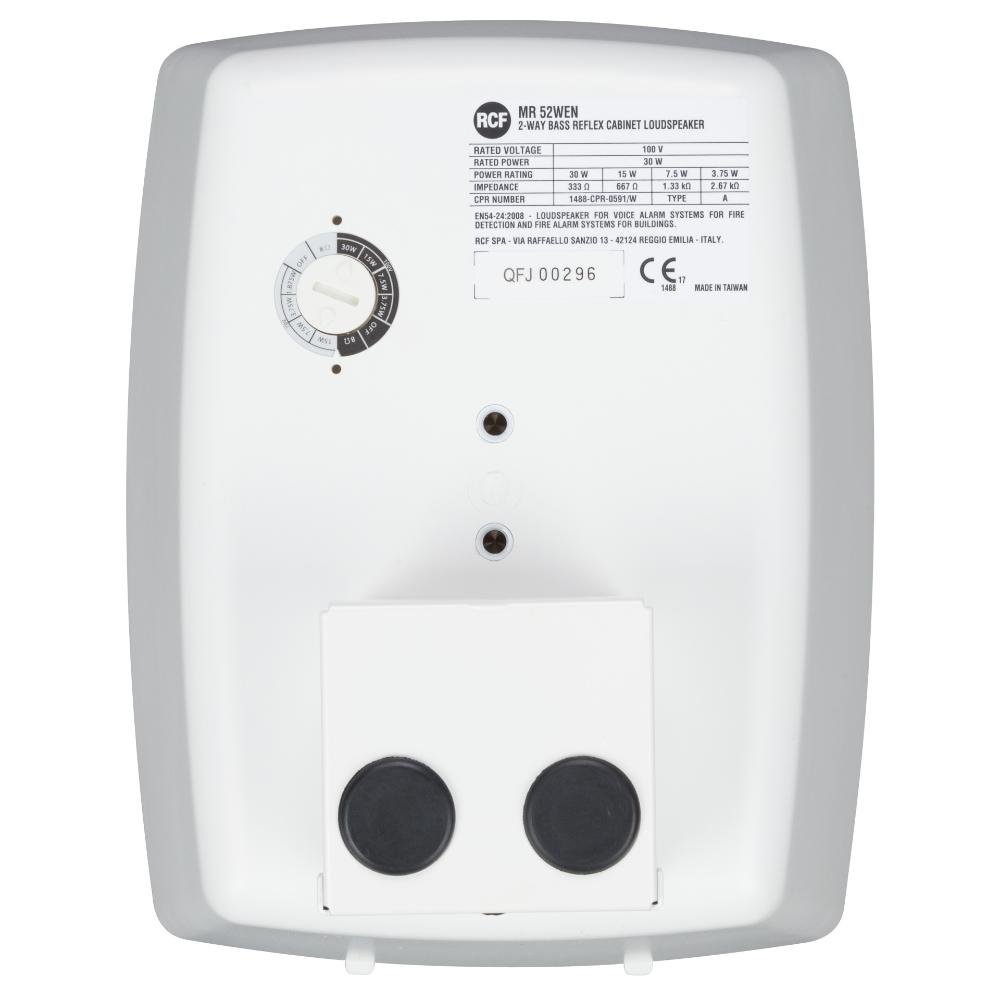

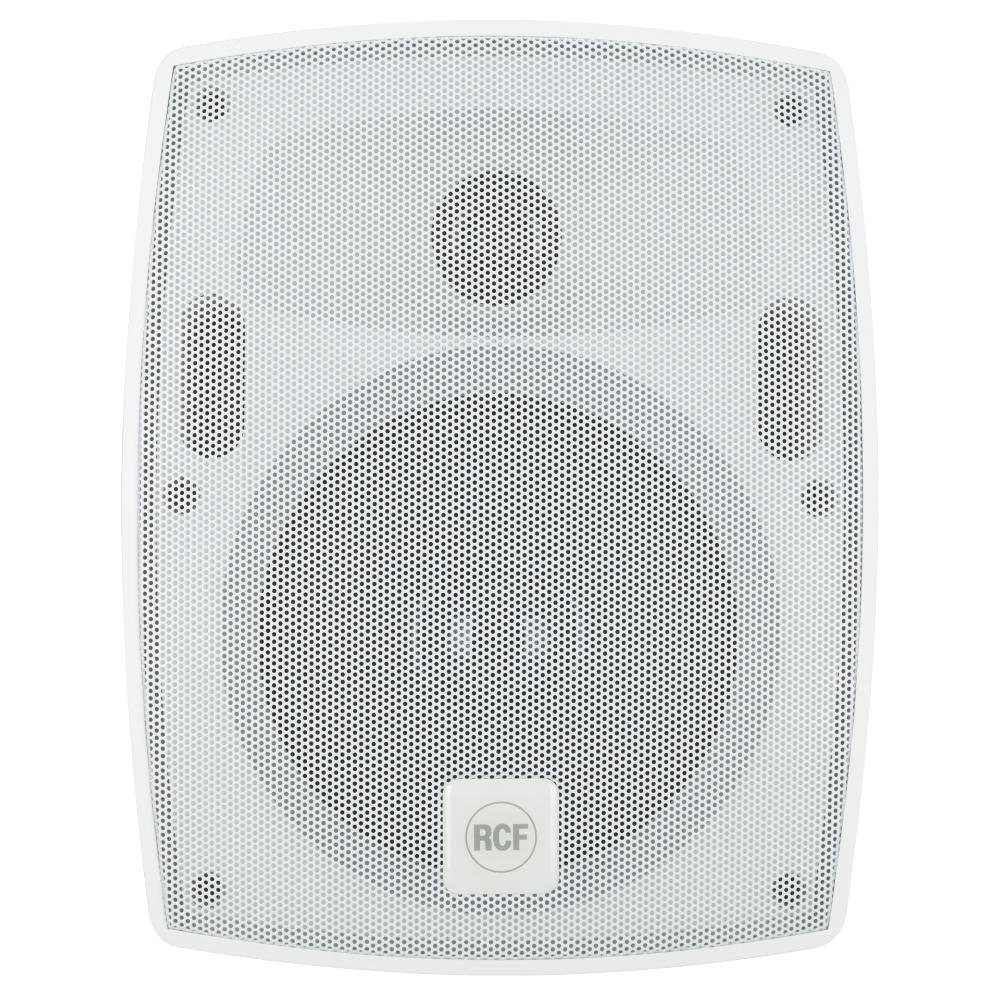

MR 52EN is a compact two-way speaker ideal for both alarm messages broadcasting and business music systems. The installation is fast and efficient using the adjustable mounting bracket (included). The enclosure is made of high-density ABS and includes a protective steel grille and connection cover. The terminal connection blocks, for input and output flameproof cables, are made of ceramic material. A thermal fuse protects the integrity of the line in case of heat affecting the speaker. Power selectable with dedicated switch.
Product Description
- 5" woofer with 1" dome tweeter
- Power selectable (100 V): 30 W – 15 W – 7.5 W – 3.75 W
- 89 dB sensitivity
- Colour white RAL 9016
- Flameproof ABS body, steel grille
- In/out ceramic terminal block
- Thermal fuse protection
Product Specification
ACOUSTICAL SPECIFICATIONS

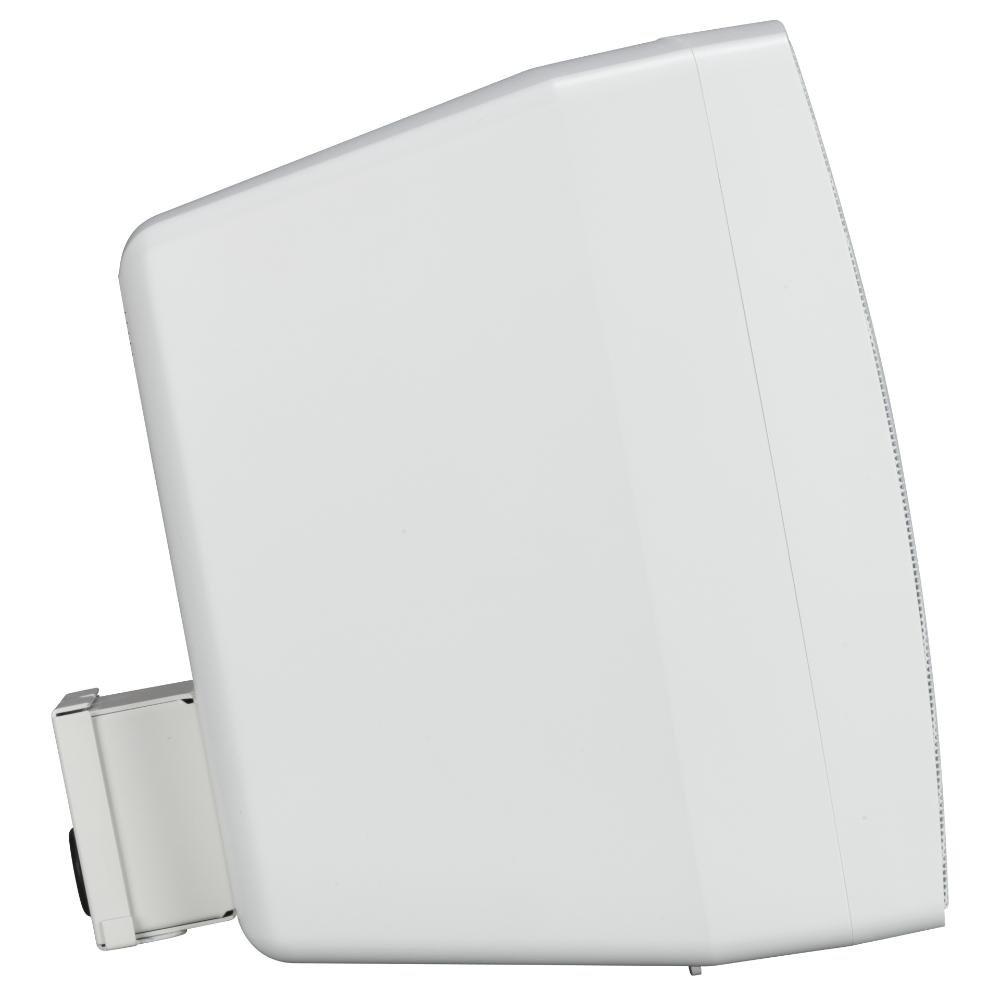

MR 52EN
2 WAYS BASS REFLEX MONITOR SPEAKERS
Product Summary
The C3108-126 is a full range extremely versatile wide-dispersion,
low profile, two-way loudspeaker system for near field applications.
Its compact size makes it ideal for low visibility side wall mounting.
The high-frequency section is a constant directivity horn loaded to
a 1” compression driver with a 1.5” diaphragm assembly for smooth,
wide dispersion. The low-frequency transducer is an 8” woofer with
a 2” voice coil.
Dynamic high-frequency driver protection is accomplished with a
new RCF exclusive - ‘Active Mosfet Compression Driver Protection
System’ (AMCDP), chosen to complement the driver power curve.
Product Description
120°x 60° CMD (Constant Matching Design) constant
directivity horn
Rotatable Horn System for horizontal cabinet mounting
applications
HF driver AMCDP (Active Mosfet Compression Driver
Protection)
LICC (Low Impedance Compensated Crossover) network
8 Suspension points
OmnimountTM 75 Plate fixing positions on rear of cabinet
Product Specification
POWER SECTION
(top and bottom)
C 3108-126
CMR 50T
